Product Description

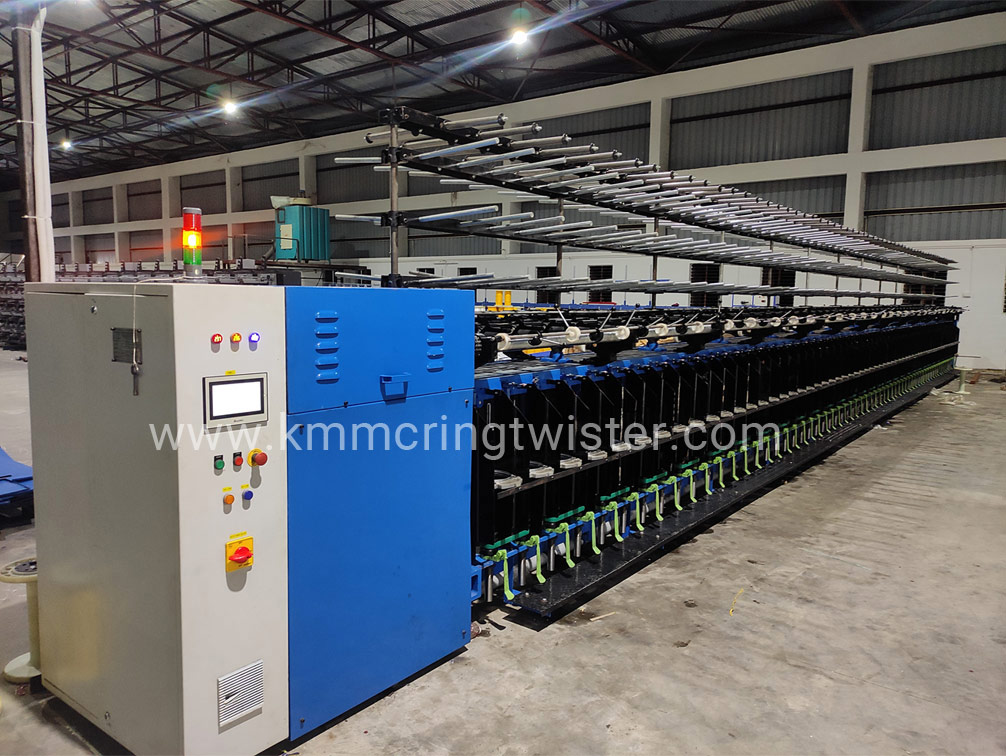

Our Ring Doubling Machine is a versatile solution for ring diameters from 2", 2.1/8", 2.1/2", 3". Its uniform and multifunctional operations are suitable for process type of cotton, polyester, P.V., Acrylic and Silk threads. Machine spindle range is variable, can be customized by use of light as well as heavy duty spindle fittings depending on product and machine operation requirements.
For desired output range, thread type machine speed and spindle RPM is also variable from 8000 rpm to 11500 rpm.
Advantages
- Two line roller and hard chromium plating.
- Less noisy & less power consumption.
- User can change automatically TPI/TPM setting by PLC & HMI control system instead of manual gear change.
- Optimum production & Easy to operate.
- simply touch in HMI to run Milk bottle or parallel shape bobbin (both option available )
| TPI/TPM Setting type | Automatic (User pushes the keypad and change TPI/TPM, No need to any mechanical change over). |
| Builder | Heavy duty Double Reduction gear box with motor for parallel wind on double flanged bobbin (Milk shape bottle or parallel shape bobbin or pinapple shape bobbin) |
| Rings and Lubrication | S.L. Ring mounted on Alum. Ring holders continuously provided with lubricating oil. |
| Feeding Device | Consisting of two lines of continuous type Chrome plate steel rollers each dia. As per depend up on product and TPI/TPM mounted on antifriction bearings and one line of individual rubber cot mounted Top roller. |
| Thread Traversing | Horizontally Traversing type, chrome plated Steel, behind feeding (delivery ) rollers |
| Thread Traversing | Fixed on Cross Rail |
| Separators | Full length Separator made from SS / anodized aluminum./m.s. powder coated |
| Main Drive | Constant speed, through V-Belts and Pulley from main motor on Driving shaft. Mounting and leveling on heavy duty self alignment roller bearing |
| Twist Changing | By HMI unit simply by feeding require TPI/TPM |
| S-Z Twist Setting | By HMI (selects as per your requirement S twist or Z twist) |
| Spindle Drive | Slip-free four Spindle drive by tape from Dynamically balanced A.B.S./aluminum Pulley mounted on self-aligning ball bearing shafts |
| Spindle | Heavy Duty dynamically balanced SPINDLE with high quality inserts |
| Creel | Porcupine type creel or ground mounted creel (as per your requirement) |
| Yarn Delivery | Under back bottom roller, over top roller and under front bottom roller to lappet hook. |
Technical Data
| No of spindle | 504 | 504 | 400 | 344 |
| Spindle gauge | 3" | 3" | 3. 1/2" | 4" |
| Ring dia | 2" | 2 1/8" | 2 1/2" | 3" |
| Lift | 8 or 9 | 8 or 9 | 10" | 10" |
| Spindle RPM | 11,500 | 11000 | 9000 | 8000 |
