Product Description

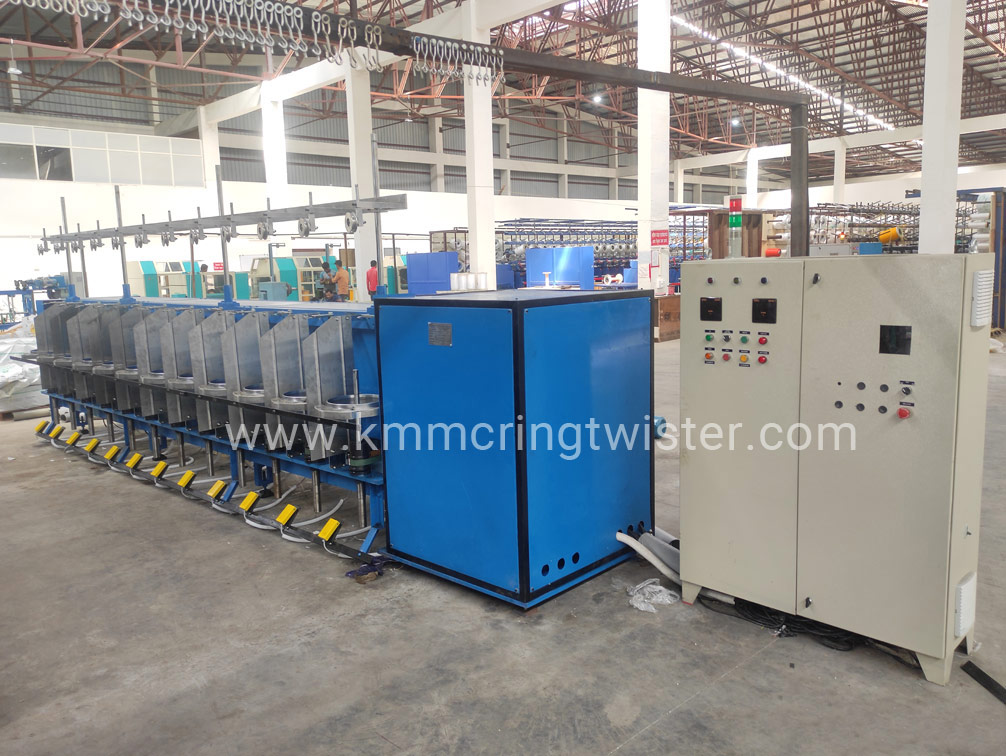

Online Ring Winder is used for Twisting and Winding of the filaments drawn directly from the Extruder. This will reduce the percentage of waste and helps to save Electric Power & Time. Moreover, this machine will replace the use of Bobbin Winder from the Extrusion Plant.
Available in multiple Spindles as per customer requirement, from small production output through 12 to high end output 48 no spindle . machine ring diameter available for online ring winder is from 8.5? to 11.25? as typical requirement. Denier range is 5000 denier to 40000 denier.
Advantages
- Optimum production & Easy to operate.
- Less noisy & less power consumption.
| Builder | Heavy duty double worm Reduction gear box with motor for parallel wind on double flanged bobbin. |
| Rings and Lubrication | S.L. Ring mounted on Alum. Ring holders continuously provided with lubricating oil. |
| Feeding Device | Direct from extruder to guide pulley to lappet hook. |
| Separators | Full length Separator made from SS / anodized aluminum. |
| Main Drive | Separate 1 HP /2 HP, 1440 RPM break motor for each spindle. |
| S-Z Twist Setting | By key in control panel. |
| Spindle | Heavy Duty dynamically balanced spindle with Heavy duty bolster |
| Yarn Delivery | Direct from extruder. |
Technical Data
| Ring Diameter | 8 ½" | 10" | 11.25" |
| Spindle gauge | 12" | 14" | 16" |
| Lift | 12" / 14" | 12" / 14" | 12" / 14"/16 |
| Spindle speed (max.) | 3000 | 2500 | 1800 |
| Spindle | 12, 16 ,20,24,28,32,48 | 12, 16 ,20,24,28,32 | 12, 16 ,20,24 |
